10-S & H
In Stock$5,385.00 – $5,495.00
-
With this safe and extremely easy-to-use tug, you can easily push, pull, turn, and maneuver nearly any aircraft without wheel fairings under 16,000 lbs. Available with a stationary platform (-S) or hydraulic lift platform (-H), which can raise/lower the nose/tail up to 6/12 inches.
Up to 16,000 lbs
Stationary or Hydraulic Platform
Non-fairing planes
frequently bought with
Pneumatic Caster
$60.00
Snow Chains
$74.00
Hangar Ramp
$99.00
Extended Handle for Long-nose Planes
$249.00
Night Light
$99.00

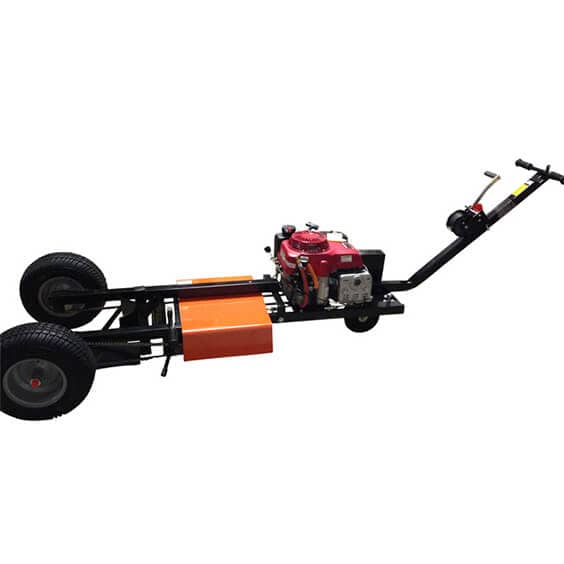

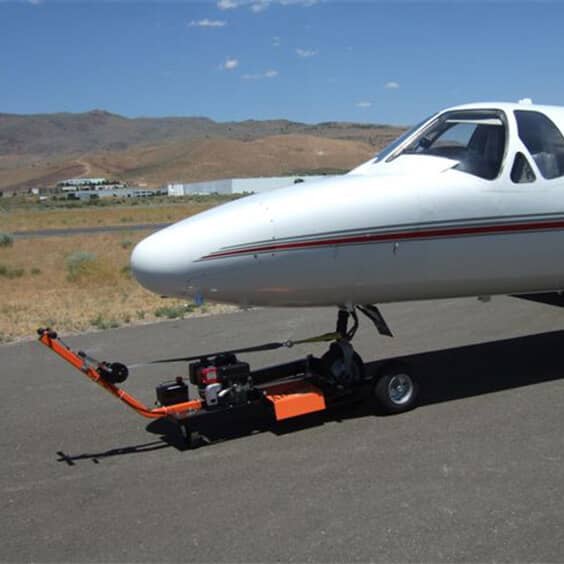

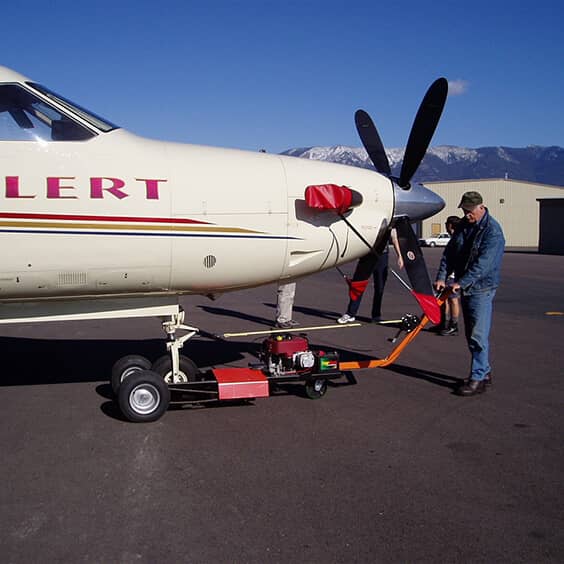

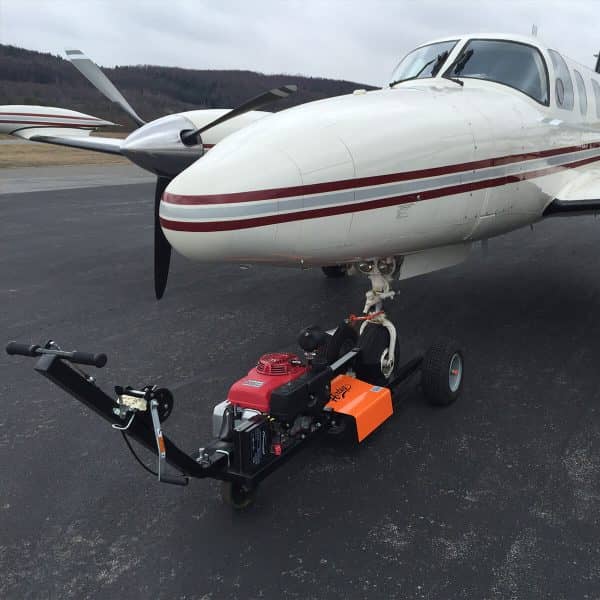

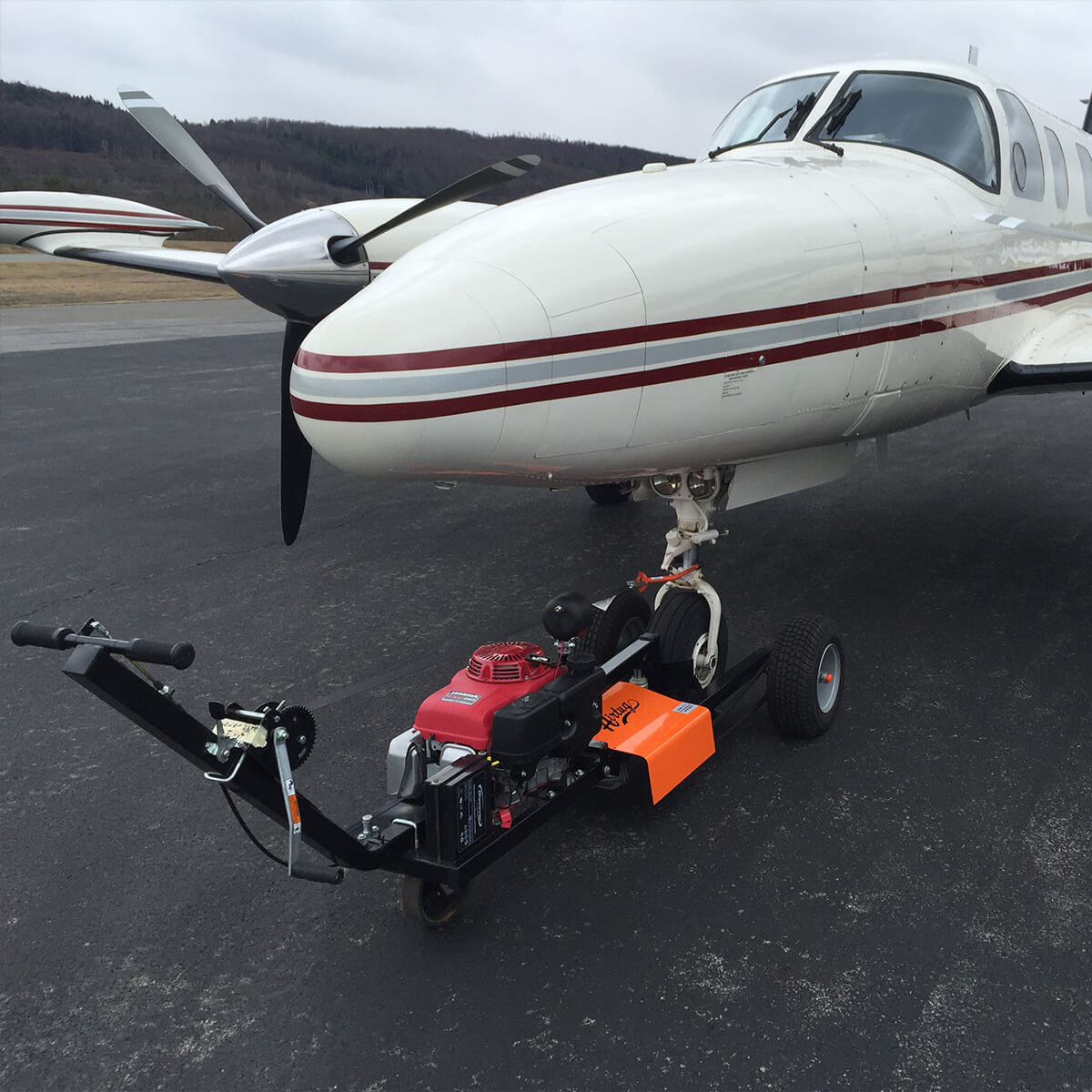

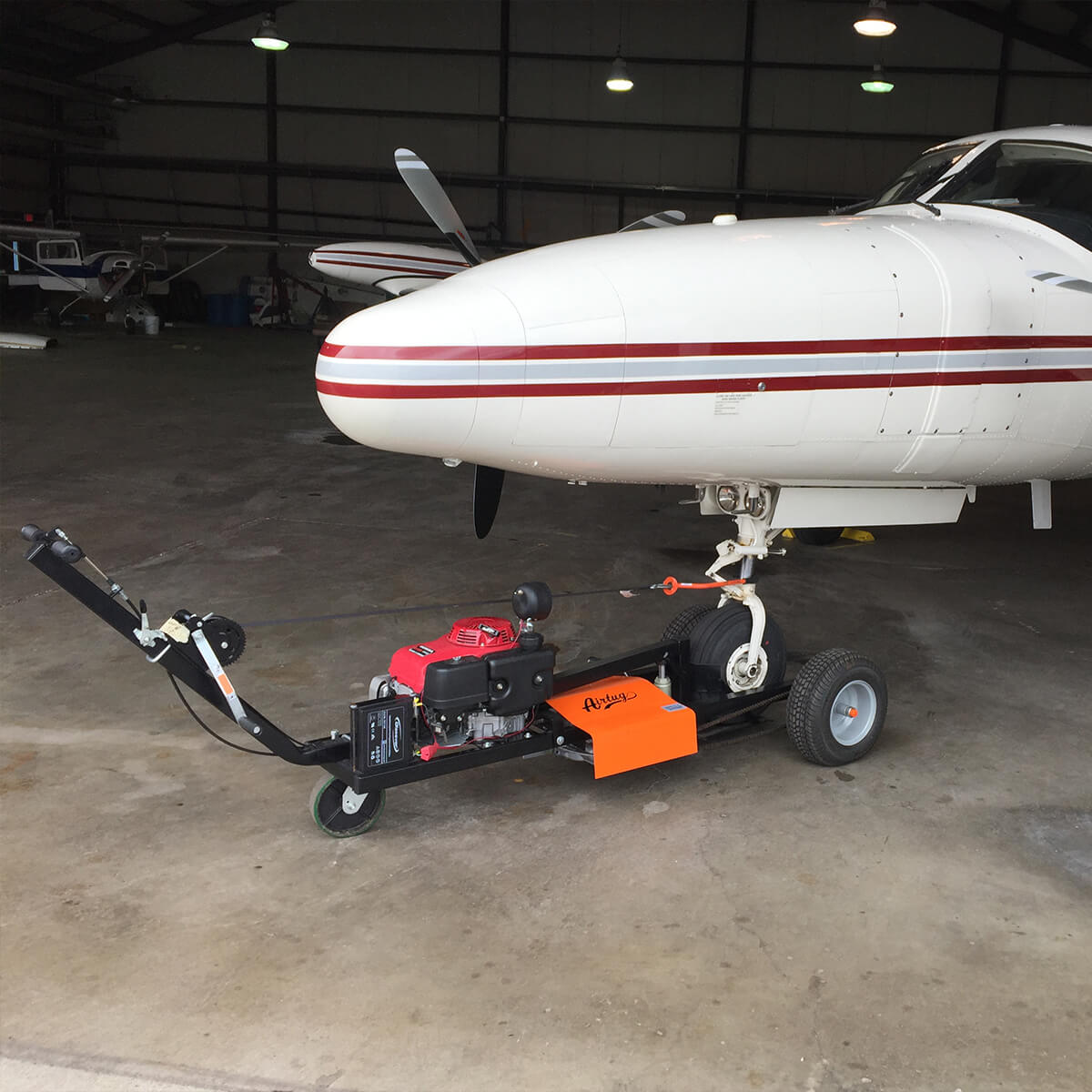

The 10-S is the perfect gas tug solution to move nearly any plane under 16,000 lbs. The plane’s wheel is hoisted onto a sturdy, elevated platform, allowing for wide turns without dragging the wheel across the ground and easy navigation over various terrains.
The -S model has a fixed, stationary platform that sits low enough to the ground for easy loading.
The -H model has a hydraulic lift platform that allows you to raise the nose up to 6 inches, which will lower the tail about double that amount.
With our intuitive thumb throttle, you can smoothly and effortlessly control the tug at a variable speed that suits your comfort. The Honda motor and hydrostatic transaxle work in tandem to do all the heavy lifting, so you don’t have to break a sweat. The 16.5” drive tires powered by a differential and a free-wheeling caster under the handle make tough turns an afterthought.
The 10-S is ideal for most private and commercial planes without wheel fairings under 16,000 lbs.
detail | 10-S | 10-H |
---|---|---|
Tow Weight | Up to 16,000 lbs | |
Compatability | Most non-fairing nose- and tail wheel planes | |
Platform | Fixed Stationary Platform | Hydraulic Jack Powered Lift Platform to raise nose and lower tail |
Engine | Heavy Duty 10 HP Honda | |
Transmission | Hydrostatic Transaxle with Differential | |
Turning Radius | 360° with the help of our free-wheeling pivot caster | |
Parts Warranty | 1 Year | |
Wheels | 16.5″ Drive Wheels | |
Product Weight | 295 lbs | 315 lbs |
Price | $5,385 | $5,495 |
