Video: scroll down for videos
Availability
Excepted lead time is 0-5 days.
Compatibility
Most Private and Small Commercial Aircraft up to 16,000 lbs. See Chart
Shipping Time
1-5 business days domestic and 3-8 business days international
Description

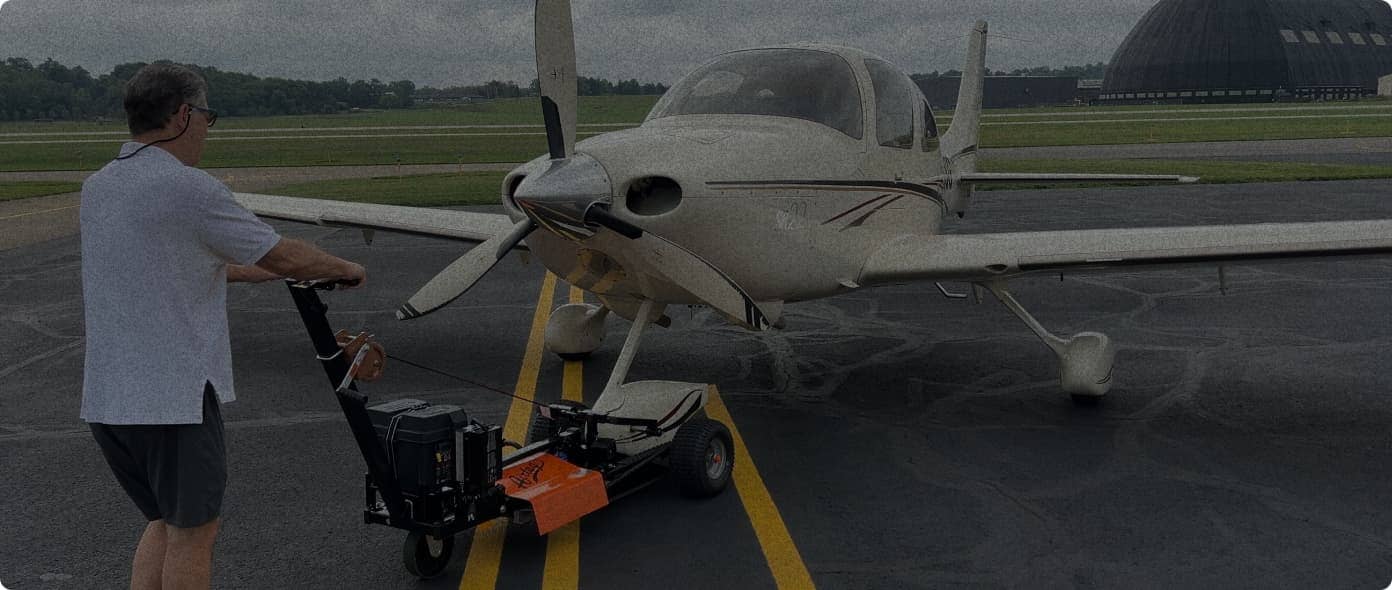

The 10-H model AirTug® is the tug of choice for those who need to lower the tail to enter a hangar or are working with a lip 3/4″ or greater. The nose-wheel is loaded onto a platform which can then be raised by a hydraulic jack up as much as needed to a maximum of roughly 7”, thus lowering the tail by approximately double this amount. Additionally, it is easy to use because of its’ unique “Twist Grip Control” system utilizing a hydrostatic transmission, electric start and a heavy duty variable speed gasoline engine. We ensure your safety with our “Return to Brake” feature that prevents any unintentional movement of the plane when the twist grip is released. There is no metal to metal contact, no gears to shift and no jerky clutching systems to quickly wear out. Finally, its’ pinpoint handling allows the operator to pivot as tight as desired as a result of the differential transmission. All of these features simply make this aircraft tug the best in the industry!
Product Details
- Tow Weight: Up to 16,000 lbs
- Loading System: Hydraulic Lift Shoe with Winch Strap/ Strut Strap
- Type of Control: Unique “Twist Grip”
- Engine: Four Stroke 10 HP
- Type of Starter: electric with recoil back up
- Hydrostatic Transaxle with Differential
- Turning Radius: 360 ◦
- Sealed battery included
- Parts Warranty: 1 Year
- 30 Day Money Back Guarantee!
Construction Details
- 2 Ton Hydraulic Jack for Lift Shoe
- 11 Gauge Heavy Steel Frame
- 16.5” Drive Wheels capable of handling nosewheel weights up to 2000 lbs.
- Low Profile unit available for lower axle clearances and 13″ Drive Tires (call for availability)
- Product Dimensions: 105″ x 37″ x 35″ Weight: 315 lbs
Shipping Details
- Preassembled (Except Handle)
- Skidded for truck shipment (skid 76” x 38” x 27”)
For Purchases in Europe
For purchases in Germany and EU, please check out our distributor:
10-H Dimensions
Additional Information
- Airtug® 10-H Aircraft Tug Dimensions
- AIRTUG FAQ’s
- Submit AIRTUG Question
- Watch AIRTUG Video
- AIRTUG® 10-H Brochure
- AIRTUG® 10-H and 10-S Operator Instructions
